陶瓷纤维模块安装

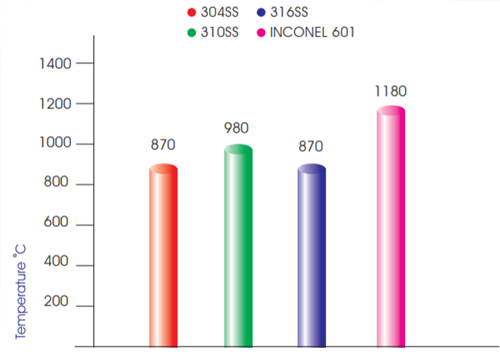

锚固件使用温度极限Temperature limit of firm wares use

二、模块安装指导

1、先安装炉顶，再安装侧墙。侧墙模块安装应从底部向上开始安装。 First to install furnace top,then side wall,it should be installed from bottom to top for the side wall

2、模块通常采用地板式排列。 It takes floor style lining normally

3、模块安装完毕后，应抽掉打包带以及夹板。 It should get rid of belts and boards after modules installation

三、非膨胀方向的处理

1、先安装炉顶，再安装侧墙。侧墙模块安装应从底部向上开始安装。

First to install furnace top,then side wall,it should be installed from bottom to top for the side wall

2、模块通常采用地板式排列。

It takes floor style lining normally

3、模块安装完毕后，应抽掉打包带以及夹板。

It should get rid of belts and boards after modules installation

1、在模块非膨胀方向对接处应塞夹层毯。

To fill the blankets in the unexpanded direction of modules

2、先塞入两块金属夹板，再用木块稍微撑大缝隙，然后用金属导板按图所示把夹层毯塞入缝隙。

To fill two piesces of metal board firstly,then to enlarge the crack with wood,next to fill the blankets into crack

with metal boards according to the drawings
